![Mitac PD10BI (Intel DN2800MT2) Rev.2 Half-Height (Intel Bay Trail Celeron J1900 4x2.42Ghz CPU, 10-19VDC) [<b>FANLESS</b>]](http://minitft.com/image_db/Mitac_PD10BI_MT.jpg)
from AC Power adapter (12V, 5A, 60W)
110/230V

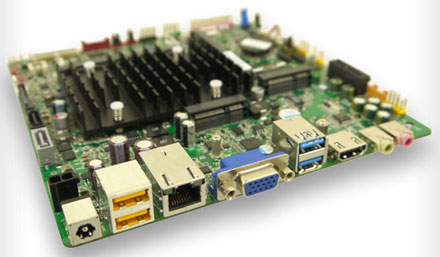

Mitac PD10BI (Intel DN2800MT2) Rev.2 Half-Height (Intel Bay Trail Celeron J1900 4x2.42Ghz CPU, 10-19VDC) [FANLESS]
This board is produced by MITAC, the OEM producer of Intel DN2800MT. This board is based on Intel DN2800MT, but is equipped with the moderm Intel BayTrail plattform.
- Successor model of Intel D945GSEJT and DN2800MT mainboard
- Quad-core Intel Celeron J1900
- Slim form factor; <20mm z-height
- Meets channel All-In-One specification
- ExpressCard/34 adapter option (mobile ecosystem compatibility) via PCIe mini Card
- Supports new Mobile SATA (SSD) card via full-length PCIe Mini Card
- Supports Z-U130 flash drive
- Wide-range (10-19V) input voltage tolerance
- TPM stuffing option
| CPU | Intel Celeron J1900 |
| Graphics | Intel GMA HD |
| Formfactor | ITX (17x17cm) |
| RAM | 2x SO-DDR-III |
| Audio | 2+2 Channel HD Audio |
| Base | Intel ITX |
| USB | 8x USB 2.0 |
| Firewire | -- |
| IDE/SATA | 2x SATA |
| LAN | 1x 10/100/1000 Mbit |
| Parallel | 1x |
| Serial | 2x |
| yes | TV-Out |
| no | PCI |
| yes | Mini-PCI |
| no | IDE |
| no | DVI |
| yes | 800x480 Resolution |
| yes | Passive-Cooling |
| yes | PCI-Express |
| no | PCMCIA |
| yes | SATA |
| no | CPU changeable |
| no | Compact Flash |
Please login for creating product ratings.
from harry.dangeanu am 16.11.2023
|
from DarkwarrioR am 08.08.2016
|
| See all my comments
from GEMZBuQkb am 29.03.2016
|
1
2
3
Forward
Your rating:
Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating.
If you want you also can leave a comment.
Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And
you can benefit from reports other customers are giving.
In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters)
on your account. The credit will be substracted automatically on your next order !
We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders).
"Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.
|
Customer ratings:
Average rating, based on 13 ratings |
from harry.dangeanu am 16.11.2023
|
from DarkwarrioR am 08.08.2016
|
| See all my comments
A big plus for this motherboard is the integrated PSU because not only you can plug power adaptor straight to the motheboard, but also it eliminates quite a few cables inside the case, so it's easy to keep them organized. The sata power cable for ssd/hdd plugs in straight to the motherboard, and there is another, one to two ends sata power cable included, in case if you need to plug in another drive.
A minus for this mobo is well integrated PSU... because if that fails that means you have to replace the entire board.
The motherboard doesn't require any fan, but I recommend installing a case fan to run at minimum rpm just to provide some airflow because it does get quite hot in there
from GEMZBuQkb am 29.03.2016
|
I bought this motherboard for a home server, a good advantage is that you can use any power supply between 10-19vdc, I use 12v 2amps which I had it in the house, so I didn't have to spend extra money. The main goal was to get as less as possible power consumption and:
-booted from a usb (linux) without any hdd attached in idle console mode -> "6.5 -7 watts" which is cool, this will be the way I'll use this board 24/7
![DIMM SO-DDR-3 4GB [Low Voltage, 1.35V & 1.5V Supported]](http://minitft.com/image_db/CAT_RAM_SO_DDR3.jpg)
Compatible enclosures
CFI A-7879 V2 Mini-ITX enclosure (4x 3.5" NAS, 1x 2.5", Hot-Plug, 1x PCI, 250W)
M200-LCD Enclosure
M350 Mini-ITX enclosure
MHero-L-B Mini-ITX enclosure (1x PCI, Slimline ODD, 84W PSU)
MHero-L-R Mini-ITX enclosure (1x PCI, Slimline ODD, 84W PSU)
MHero-S-R Mini-ITX enclosure (with 84W PSU)
