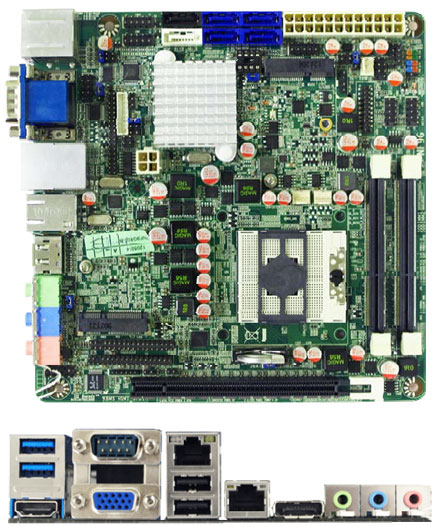

Jetway NF9G-QM77 (Intel Q77)

PRODUCT IS CURRENTLY NOT AVAILABLE !

Intel® QM77 Express Chipset
Supports Intel Core™ i3, i5, i7 Mobile Processors for Socket G (rPGA988)
2 * Dual Channel DDR3-1333/1066 up to 16GB
Intel 82579LM & 82574L Gigabit LAN
Intel Active Management Technology ( iAMT 8.0)
PCI Express x16 Slot
Integrated 24-bit Dual Channel LVDS
4-port SATAII 3Gb/s & 2-port SATA III 6Gb/s with RAID 0, 1, 5, 10 Support
HDMI, DP and VGA Video Outputs
Support Jetway PCI-E Daughter card
Built-in Watchdog Timer Technology
Mini-ITX Form Factor (170mm x 170mm)

RAM :

SSD (mSATA):

Build/Install:

CPU	Supports Intel Core™ i3, i5, i7 Mobile Processors for Socket G (rPGA988)
Chipset	INTEL® QM77 Chipset
Memory	2 * SODIMM Sockets for un-buffered Dual CH DDR3 1333/1066 Max. up to 16GB
Expansion Slots	1 PCIe x 16 2 Mini PCI-E socket
Storage	2 * Serial ATA3 6Gb/s & 4 * Serial ATA2 3Gb/s connectors support RAID 0, 1, 5, 10 1 * mSATA socket (Selectable with full size Mini PCI-E socket)
Audio	Realtek ALC662 6-Channel HD Audio CODEC
Ethernet LAN	Intel 82579LM & 82574L PCI-E Gigabit Ethernet LAN
LVDS	Onboard 24-bit dual channel LVDS connector
USB	Embedded 6 * USB 2.0/1.1 & 4 * USB 3.0
Special Features	Support ACPI S3 Support CPU Smart FAN Support Watch Dog
Rear Panel I / O	2 * USB 2.0/1.1 ports & 2 * USB 3.0 ports 2 * RJ-45 port 1 * HDMI port 1 * COM port 1 * DP port 1 * VGA port 3 * Audio Phone Jack
Internal I / O	2 * USB 2.0/1.1 headers for 4 USB 2.0 ports 1 * USB 3.0 headers for 2 USB 3.0 ports CPU /NB / Chassis Fan connectors 3 * COM headers (COM4 for RS232/422/485) 1 * GPIO header 1 * CIR header 1 * Chassis Intrusion header 1 * AUDIO header 1 * 24-pin & 4-pin 12V ATX Power connectors
BIOS	AMI EFI 64MB SMT Flash ROM
Form Factor	Mini-ITX Form Factor (170mm x 170mm)
Functional	ATM, Automation, Medical Equipment, Security, Networking, POS, General Application, Gaming Machine, Transportation, NAS
Certificate	CE, FCC, RoHS
Temperature	Operating within 0~60 centigrade Storage within -20-85 centigrade

Data sheet	Download (PDF)
Data sheet	Print view
Jetway Catalog (ARM)	Download (PDF)
Jetway Catalog (Mainboards)	Download (PDF)
Specifications	Download (PDF)
