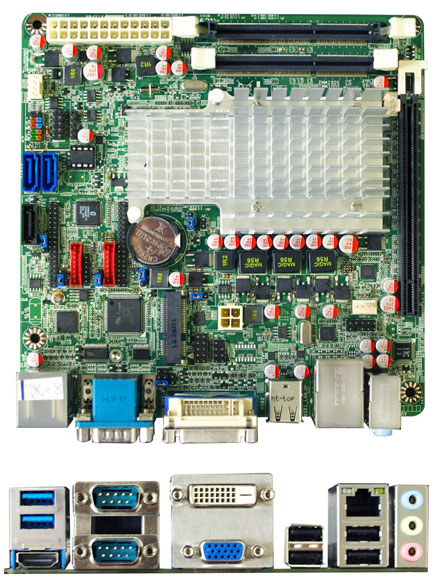

Jetway NC9Q-847 (Intel NM70)

PRODUCT IS CURRENTLY NOT AVAILABLE !
Jetway NC9Q-847 (Intel NM70)

  • INTEL® Celeron 847Processor + NM70 Chipset
  • Support 2 * DDR3 1066/1333MHz Dual-channel up to 16GB
  • Support DirectX 10.1, DirectX10, DirectX9 Graphics
  • Support 2 * Serial ATAII (3Gb/s) & 1 * Serial ATAIII (6Gb/s) Devices
  • Integrated Realtek ALC662 HD Audio CODEC with 6-CH
  • 2 * 24 bits Dual Channel LVDS header
  • Supports 1 * Realtek RT8111F Gigabit LAN
  • Support 2 * COM ports (COM1 for RS232/422/485)
  • Support Windows 8
  • Support Watch dog Technology
  • Support CPU Smart FAN
  • Compliance with ErP standard
  • Mini-ITX Form Factor (170mm x 170mm)


Share

RAM :

SSD (mSATA):

OS:

Build/Install:
CPU INTEL® Celeron 847 Dual Core Processor (1.1GHz)
Chipset INTEL®NM70 Express chipset
Memory 2 * DDR3 1066/1333MHz  Dual-channel  SO-DIMM up to 16GB
Expansion Slots 1 * PCI –E x 16 slot 1 * Mini PCI-E socket
Storage 2 * Serial ATA2 3Gb/s & 1 * Serial ATA3 6Gb/s connectors 1 * mSATA (Share with Mini PCI-E slot)
Audio Realtek ALC662 6-Channel HD Audio
Ethernet LAN 1 * RTL8111F PCI-E Gigabit LAN
LVDS Onboard 2 * 24-bits Dual channel connector
USB Embedded 2 * USB 3.0 & 7 * USB 2.0/1.1
Special Features Support ACPI S3 Support CPU Smart FAN Support Watch Dog
Rear Panel I/O 2 * USB 3.0 4 * USB 2.0/1.1 ports 1 * RJ-45 port 3 * Audio I/O ports ( Line-in, MIC and Line-out ) 1 * VGA port 1 * DVI-D port 1 * HDMI port 2 * COM ports (COM1 for RS232/422/485)
Internal I/O 2 * USB 2.0/1.1 headers for 3 USB 2.0 ports 1 * PS/2 Mouse & 1 * Keyboard header 2 * NB / Chassis Fan connectors; 2 * LVDS headers /2 * Inverter headers 1 * AUDIO header
BIOS AMI 32MB UEFI DIP Flash ROM
Functional ATM, Automation, Medical Equipment, Kiosk, Networking, POS, General Application, Transportation
Packing Color Box Dimension：200(W) x 200(D) x 70(H)mm
Certificate CE, FCC, RoHS
Temperature Operating within 0~40 centigrade (Suggest to use system FAN) Storage within -20-85 centigrade
Form Factor Mini ITX Form Factor(17cmx17cm)
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (ARM) Download (PDF)
Jetway Catalog (Mainboards) Download (PDF)
