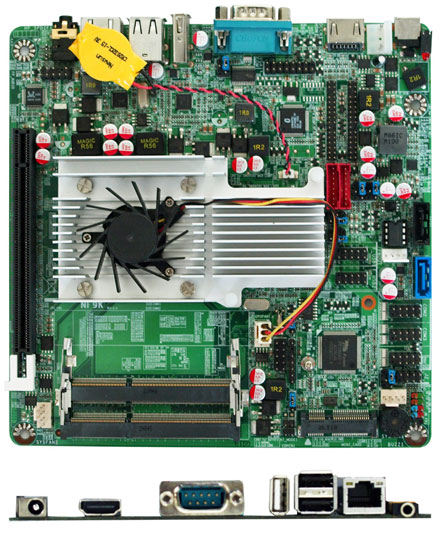

Jetway NF9KC-1047 (Intel HM65)

Jetway NF9KC-1047 (Intel HM65)

  • INTEL® Celeron 1047UE Processor + HM65 Chipset
  • Support 2 * DDR3 1600/1333MHz Dual CH up to 16GB
  • Support DirectX 9 Graphics
  • Support 1 * Serial ATAII (3Gb/s) & 1 * Serial ATAIII (6Gb/s) Devices
  • Integrated Realtek ALC662 HD Audio CODEC with 2-CH
  • 2 * 24 bits Dual Channel LVDS header
  • Supports 1 * Realtek RT8111F Gigabit LAN
  • Support 4 * COM ports (COM1 & COM4 support RS232/422/485)
  • Support Windows 8
  • Support Watch dog Technology
  • Support +9V~+24V Wide range power DC-in
  • Support CPU Smart FAN
  • Compliance with ErP standard
  • Thin Mini-ITX Form Factor (170mm x 170mm)
  • < [more]

    Share

249.00 EUR
incl. 19% VAT, plus shipping
In Stock (1 pcs)

Add to cart

  • INTEL® Celeron 1047UE Processor + HM65 Chipset
  • Support 2 * DDR3 1600/1333MHz Dual CH up to 16GB
  • Support DirectX 9 Graphics
  • Support 1 * Serial ATAII (3Gb/s) & 1 * Serial ATAIII (6Gb/s) Devices
  • Integrated Realtek ALC662 HD Audio CODEC with 2-CH
  • 2 * 24 bits Dual Channel LVDS header
  • Supports 1 * Realtek RT8111F Gigabit LAN
  • Support 4 * COM ports (COM1 & COM4 support RS232/422/485)
  • Support Windows 8
  • Support Watch dog Technology
  • Support +9V~+24V Wide range power DC-in
  • Support CPU Smart FAN
  • Compliance with ErP standard
  • Thin Mini-ITX Form Factor (170mm x 170mm)

CPU INTEL® Celeron 1047UE Dual Core Processor (1.4GHz)
Chipset INTEL®HM65 Express chipset
Memory 2 * DDR3 1600/1333MHz Dual CH SO-DIMM up to 16GB
Expansion Slots 1 * PCI –E x 16 slot
Storage 1 * Serial ATA2 3Gb/s & 1 * Serial ATA3 6Gb/s connectors 1 * full size mSATA socket (Selectable W/Mini PCI-E)
Audio Realtek ALC662 2-Channel HD Audio
Ethernet LAN 1 * RTL8111F PCI-E Gigabit LAN
LVDS Onboard 2 * 24-bits Dual channel connector
USB Embedded 7 * USB 2.0/1.1
Special Features Support ACPI S3 Support CPU Smart FAN Support Watch Dog
Rear Panel I/O 3 * USB 2.0/1.1 ports 1 * RJ-45 port 1 * Line-out connector 1 * HDMI port 1 * COM port (COM1 for RS232/422/485) 1 * +9V~+24V DC in jack
Internal I/O 2 * USB 2.0/1.1 headers for 4 USB 2.0 ports 1 * VGA header 1 * PS/2 header 1 * Chassis Intrusion 2 * NB / Chassis Fan connectors; 2 * LVDS headers /2 * Inverter headers 1 * AUDIO header 1 * Chassis Intrusion
BIOS AMI 32MB UEFI DIP Flash ROM
Functional Panel PC, All-in-One PC, Digital Signage, POS Machine
Packing Color Box Dimension:200(W) x 200(D) x 70(H)mm
Certificate CE, FCC, RoHS
Temperature Operating within 0~40 centigrade Storage within -20-85 centigrade
Form Factor Thin Mini ITX Form Factor(17cmx17cm)
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (ARM) Download (PDF)
Jetway Catalog (Mainboards) Download (PDF)
