![Mitac PD11TI (Intel DN2800MT-E) Half-Height (Intel Atom 2x1.86Ghz CPU, 10-19VDC) [<b>FANLESS</b>]](http://minitft.com/image_db/Mitac_PD11TI.jpg)
DIMM SO-DDR-3 4GB

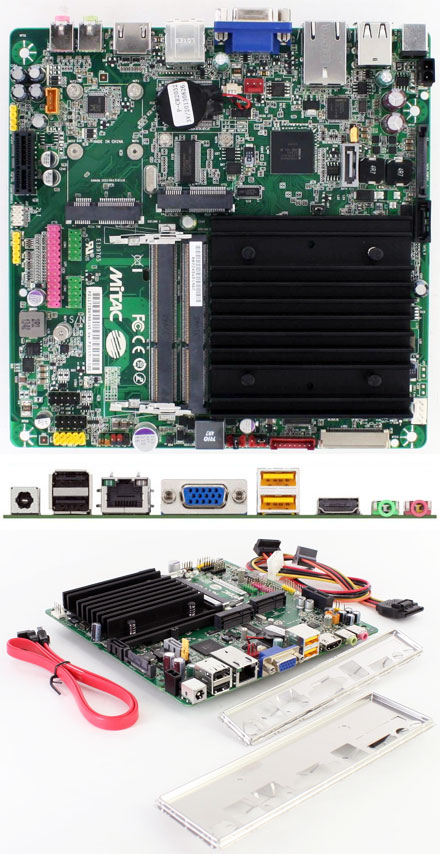

Mitac PD11TI (Intel DN2800MT-E) Half-Height (Intel Atom 2x1.86Ghz CPU, 10-19VDC) [FANLESS]
This board is produced by MITAC, the OEM producer of Intel DN2800MT. This board is identical with Intel DN2800MT (even BIOS-compatible) and available until at least 2018.
- Successor model of Intel D945GSEJT mainboard
- Dual-core Atom with Hyper Threading
- Slim form factor; <20mm z-height
- Meets channel All-In-One specification
- ExpressCard/34 adapter option (mobile ecosystem compatibility) via PCIe mini Card
- Supports new Mobile SATA (SSD) card via full-length PCIe Mini Card
- Supports Z-U130 flash drive
- Wide-range (10-19V) input voltage tolerance
- High current rating (up to 1.3A) on two back-panel USB ports
[more]
| CPU | Intel Atom N2800 2x1.86GHz |
| Graphics | Intel GMA |
| Formfactor | ITX (17x17cm) |
| RAM | 2x SO-DDR-III |
| Audio | 2+2 Channel HD Audio |
| Base | Intel ITX |
| USB | 8x USB 2.0 |
| Firewire | -- |
| IDE/SATA | 2x SATA |
| LAN | 1x 10/100/1000 |
| Parallel | 1x |
| Serial | 2x |
| yes | TV-Out |
| no | PCI |
| yes | Mini-PCI |
| no | IDE |
| no | DVI |
| yes | 800x480 Resolution |
| yes | Passive-Cooling |
| yes | PCI-Express |
| no | PCMCIA |
| yes | SATA |
| no | CPU changeable |
| no | Compact Flash |
