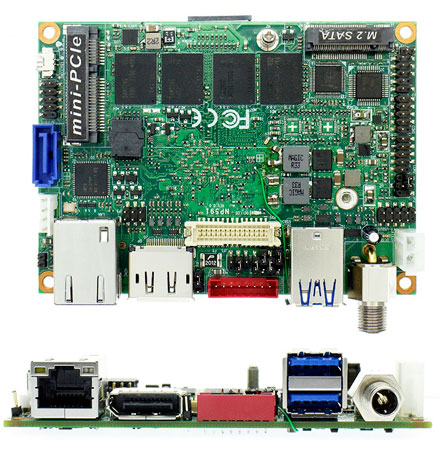

Jetway NP591D4-3150 (Intel Braswell)

Jetway NP591D4-3150 (Intel Braswell)

  • Intel® Braswell -N3150 2.08GHz
  • Support DDR3L 1600MHz Single Channel, Onboard 4GB System Memory (Option 2GB)
  • 1 * SATAIII (6Gb/s), 1 * M.2
  • Integrated Realtek ALC662VD HD Audio CODEC with 2-CH
  • 1 * 24-bits Dual Channel LVDS header
  • Support DP1.1 Output (Max. resolution 2560*1600@60Hz)
  • Support 1 * Intel® i211AT GbE LAN
  • 100 * 72 mm Pico Form Factor


Share

319.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks.
Will be ordered for you.
Add to cart

SSD (mSATA):

SSD (M.2 NVME):
Form Factor
Dimensions - Pico (100 * 72 mm)
 Processor System
CPU - Intel® Braswell - N3150 Processor
Core Number - 4
Max Speed - 2.24GHz
L2 Cache - 2M
Chipset - SoC
BIOS - AMI 64MB flash ROM
 Expansion Slot
PCI - 0
Mini-PCIe - 1 (full size)
mSATA - 0
PCIe - 0
M.2 - 1 (M-key, 2242 SATA Only)
CF Card Socket - 0
 Memory
Technology - Single Channel DDR3L 1600MHz
Max. - 4GB default
Socket - 0 ( Memory Onboard )
 Graphics
Controller - Intel® HD Graphics
VRAM - Shared Memory
VGA - 0
LVDS - 1 * Onboard 24-bits Dual channel connector
HDMI - 0
DVI-I - 0
DisplayPort - 1 (Max resolution 2560*1600@60Hz)
MultiDisplay - Yes (Dual Display)
 Ethernet
Ethernet - 10/100/1000 Mbps
Controller - GbE LAN: Intel i211AT
Connector - 1 * RJ 45
 SATA
Max Data Transfer Rate - 1* SATAIII (6.0Gb/s)
 Rear I/O
VGA - 0
DVI-I - 0
HDMI - 0
DisplayPort - 1
Ethernet - 1
USB - 2 (2* USB 3.0)
Audio - 0
Serial - 0
eSATA - 0
PS2 - 0
DC-input - 1
 Internal Connector
USB - 2 ( 2 * USB 2.0 via 10pin header )
PS2 - 0
LVDS / inverter - 1
VGA - 0
Serial - 2 ( 1 * RS232/422/485 with 5V/12V selectable header, 1 * RS232)
SATA - 1 * SATAIII (6.0Gb/s)
mPCIe - 1 (full size)
Parallel - 0
M.2 - 1 (M-key, 2242 SATA Only)
CIR - 0
GPIO 8-bit - 0
Chassis intrusion - 0
Audio Header - 1 ( Line out & MIC )
 Watchdog Timer
Output - From Super I/O to drag RESETCON#
Interval - 256 segments, 0,1,2…255sec/min
 Power Requirements
Input PWR - +12V DC-in (2-pin PWR Con)
Power On AT/ATX Supported
- AT : Directly PWR on as Power input ready
- ATX: Press Button to PWR on after Power input ready
Certifications
Certifications - CE, FCC, RoHS, REACH
 Environment
Temperature - Operating: 0℃– 40℃
- Storage: -20℃– 85℃
