Jetway NLBT-I1900 (Intel Bay-Trail)

PRODUCT IS CURRENTLY NOT AVAILABLE !

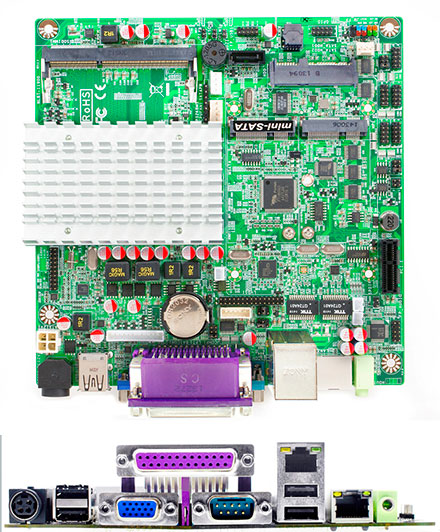

Jetway NLBT-I1900 (Intel Bay-Trail)

  • INTEL Bay Trail I1900 / N2930 Quad Core processor
  • Support DirectX 11 3D Graphics Acceleration
  • Support DDR3L 1333
  • Integrated HD Audio CODEC
  • Support 1*PCI Express Gigabit LAN
  • Support 1*USB3.0 port
  • Onboard 1*MiniPCI-E connector
  • Onboard 1 *M- SATA connector
  • 2 Phase CPU Power Support
  • Support Slim hard drive design
  • Support Amplifier function(3W)
  • Support Thunder Protection Function
  • Thin mini ITX Form Factor(170mm X170mm)


Share

RAM :
CPU-Chipset INTEL Bay Trail I1900 / N2930 Quad Core processor INTEL® Bay Trail SOC chipset 2 Phase CPU Power Support
I.O Chipset Fintek® F71869A
Memory 1* SO-DIMM slot Support DDR3L 1333 Max. capacity of system memory up to 8GB
Expansion Slots 1* Mini PCI-E connector 1* PCIex1 slot
Storage 1* Serial ATA2 3Gb/s connector or 1*SATA +Power Connector(7+15Pin) 1* M-SATA Connector
Audio AVLC887 Audio CODEC HD Audio CODEC
Ethernet LAN Realtek® RTL8111G Chip PCI Express Gigabit LAN
LVDS Onboard 24-bit Dual channel
USB 5* USB 2.0/1.1(3 distribute in back panel, 2 distribute in mid-board) 1* USB3.0
Special Features Support CPU Smart Fan Support Watch dog Technology Support GPIO Technology Support VGA header Support Power On board Support Amplifier function(3W) Support Slim hard drive design Support 1*RS422/RS485 COM header Thunder Protection Function All Solid Capacitor design All Power Pack MOSFET design
Back Panel I / O 3* USB 2.0/1.1 ports 1* USB3.0 port 1* RJ-45 port 1* Line-out port 1* VGA port 1* COM port 1* 12V DC in
Internal I / O 1* USB 2.0/1.1 headers for 2 USB 2.0/1.1 ports 2* CPU / Chassis Fan connectors 5* COM headers(1*RS422/RS485) 1* PS2/KB header 1* 4-pin ATX 12V Power connector 1* 4-pin SATA Power connector 1* 12-pin VGA header 1* 20-pin HDMI header 1* 24-bit Dual Channel LVDS header 1* GPIO header 1* Mini PCI-e connector 1* M-SATA Connector 1* SATA +Power Connector(7+15Pin)(Option) 1* Audio header 1* Front panel header 1* HDMI _SPDIF header
BIOS AMI 64MB DIP Flash ROM
Form Factor Thin mini ITX Form Factor(170mm X 170mm)
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (ARM) Download (PDF)
Jetway Catalog (Mainboards) Download (PDF)
