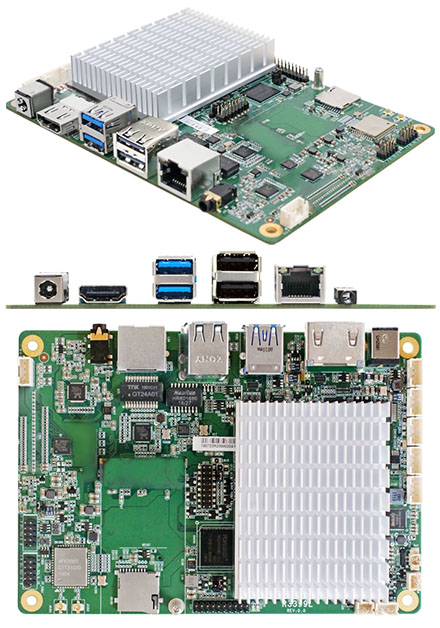

Jetway JR3399XL-2C (Rockchip ARM, 1x LAN)

Jetway JR3399XL-2C (Rockchip ARM, 1x LAN)
  • 16G Flash ROM !
  • 2GB DDR3L !
  • 6 core CPU !

  • Rockchip® ARM Cortex A72 (Dual Core) + Cortex A53 (Quad Core) RK3399 6 core 2.0GHz
  • On board 1333/2GB DDR3L DRAM, On board 16G Flash ROM (Max. 64GB)
  • Support WIFI and Blue Tooth
  • 1* Realtek GbE, 3* UART, 1* RS232, 2* USB3.0， 6* USB2.0, 1* OTG (Co-lay USB3.0), 1* HDMI2.0, 1* eDP
  • Support 4K H.264/H.265 video decoding, up to 60fp 10bits coding
  • Support 1080P H.264 format video encoding
  • 1* Micro SD Max 256GB
  • Support Android 7.1, Debian9.0


Share

259.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks.
Will be ordered for you.
Add to cart
 Model
Model – JR3399XL-2C
Part Number – JR3399XL-2C
 Form Factor
Dimensions – 102 * 146mm
 Processor System
Processor/CPU – Rockchip® ARM Cortex A72 (Dual Core) + Cortex A53 (Quad Core) 2.0GHz
– Rockchip® RK808-D PMU
 Memory
DRAM – Onboard DDR3L 1333MHz 2GB
 Expansion Slot
Dimensions – 1* Micro SD
– 1* SIM Card Socket
 Graphics
Graphics – Mali T860MP4 GPU, OpenGL ES1.1/2.0/3.0, OpenCL1.2, DirectX11.1
– 1* HDMI (Max Resolution: 3840×2160@60Hz)
– 1* eDP (Max Resolution: 4096×2304@60Hz)
– Support Dual Displays
 Ethernet
Ethernet – 1* Realtek RTL8211E GbE
Wifi – 1* AMPAK AP6356S 802.11 a/b/g/n/ac 2.4/5G WIFI and BT-V4.1
 Audio
Audio – 2 channel HD audio: ALC5640
 Storage
Storage – 16GB Flash ROM (Max 64GB)
 I/O Port
Rear I/O – 1* DC Jack (12V)
– 2* USB3.0 (Co-lay OTG)
– 2* USB2.0
– 1* HDMI2.0
– 1* AUDIO(Line-out +MIC)
– 1* RJ45
Internal I/O – 4* USB2.0
– 3* UART, 1* RS232, 1* Debug
– 1* eDP
– 1* Speaker (3W AMP)
– 1* GPIO (8 bit)
– 1* I2C
– 1* Power BT (Header)
– 1* Reset BT (Header)
– 1* CPU FAN (Header)
 Watchdog Timer
Watchdog Timer – From Super I/O to drag RESETCON#
– 256 segments(0~255 sec)
 Power
Power 12V DC-in (PWR Con)
– AT : Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready
 Compliance
Certifications – CE, FCC, LVD, RoHS, REACH
 Environment
Temperature – Operating: -10°C ~ 60°C
– Storage: -20°C ~ 70°C
Data sheet Download (PDF)
