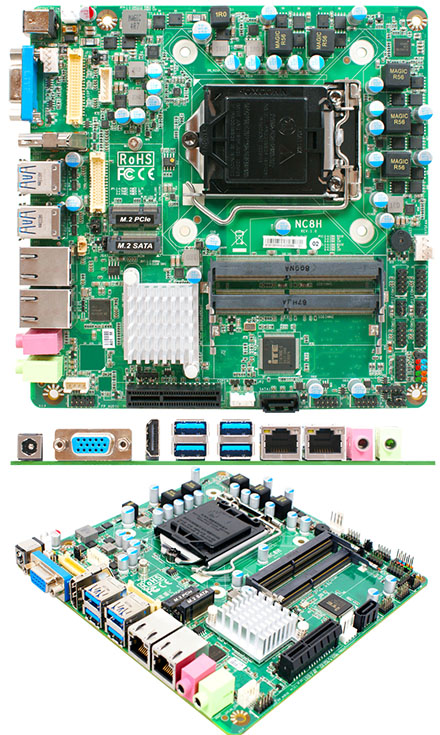

Jetway NC8HA-IH310 Thin-ITX (Intel Coffee Lake-S H310) [2x LAN]

Jetway NC8HA-IH310 Thin-ITX (Intel Coffee Lake-S H310) [2x LAN]
  • Intel Coffee Lake !
  • Mini ITX !
  • Half-Height !
  • 8th / 9th Gen. Intel Core !

  • Intel® LGA1151 Socket Core I3,I5,I7 Pentium Processor (Max. 65W)
  • Intel® Coffee Lake-S H310 Chip
  • Support Single Channel DDR4 2133MHz, up to 64GB
  • 1* Intel® I219-V + 1* Intel® i211AT GbE
  • 1* SATAIII (6Gb/s), 1* M.2 (M key 2242), 1* M.2 E key Support CNVi, 1* PCIe x4 Slot
  • HDMI/VGA /EDP (CO-lay LVDS) Output
  • 4* RS232 (COM1/2 Support 5V/12V TTL), 4* External USB3.0, 5* Internal USB2.0
  • Support Wide Voltage 12~24V DC-in
  • Thin MINI ITX Form Factor (170 *170 mm)


Share

269.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks.
Will be ordered for you.
Add to cart
RAM :

SSD (M.2 NVME):

Build/Install:
 Form Factor
Dimensions – Thin Mini ITX ( 170 * 170mm)
 Processor System
CPU – Intel® LGA1151 Series Processor (Max. 65W)
Core Number – (By CPU)
Max Speed – (By CPU)
L2 Cache – (By CPU)
Chipset – H310
BIOS – AMI 128M Flash ROM
 Expansion Slot
M.2 – 1* E key 2230,Support CNVi
– 1* M Key 2242
SATA – 1
PCIe – 1 (PCIe x4 slot)
 Memory
Technology – Single channel DDR4 2133MHz DRAM
Max. – 64GB
Socket – 2 * SO-DIMM
 Graphics
Controller – Intel® HD Graphics
VRAM – Shared Memory
VGA – 1 (Max. Resolution: 1920×1200@60Hz)
LVDS – 1 (Co-lay eDP, Max. Resolution: 1920×1080@60Hz)
eDP 1.3 – 1 (Co-lay LVDS, Max. Resolution: 4096×2304@60Hz)
HDMI 1.4 – 1 (Max. Resolution : 4096×2160@30Hz)
Multi Display – Dual Display
 Ethernet
Ethernet – 10/100/1000 Mbps
Controller – Intel® I219-V + i211AT Gigabit LAN
Connector – 2* RJ 45
 Audio
CODEC – N/A
Channel – N/A
 SATA
Max Data Transfer Rate – 1* SATAIII (6.0Gb/s)
 Rear I/O
VGA – 1
HDMI – 1
Ethernet – 2
USB – 4* USB 3.0
Audio – 1 (Line-out, MIC, No function)
DC-input – 1
 Internal Connector
USB – 5 (USB 2.0)
PS/2 – 1
LVDS / inverter – 1 (Co-lay eDP )
eDP – 1
Serial – 4 (COM1/2 Support 5V/12V TTL)
SATA – 1* SATAIII (6.0Gb/s)
M.2 – 2 (M key + E key)
GPIO – 1 (8 bit)
Chassis intrusion – 1
Audio Header – 1 (No function)
SMBUS/ I2C – 1
AT mode – 1
 Watchdog Timer
Output – From Super I/O to drag RESETCON#
Interval – 256 segments (10sec ~ 255min)
 Power Requirements
Input PWR – 12 ~ 24V DC-in
Power On AT/ATX Supported
– AT : Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready
 Certifications
Certifications – CE, FCC, RoHS, REACH
 Environment
Temperature – Operating: 0°C ~ 60°C
– Storage: -20°C ~ 85°C
