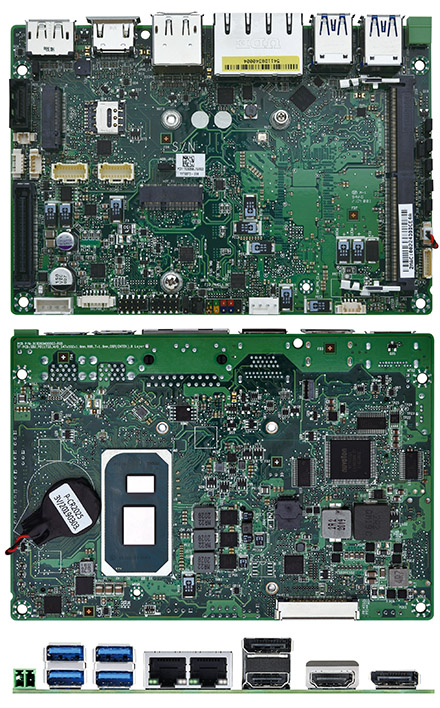

Mitac PD11TGS-1145G7E 3,5" SBC (Intel i5-1145G7E, 2x LAN, 4x USB3.1, HDMI, dP)

Mitac PD11TGS-1145G7E 3,5" SBC (Intel i5-1145G7E, 2x LAN, 4x USB3.1, HDMI, dP)
  • Intel® i5-1145G7E Tiger Lake-UP3 !
  • 2x Gigabit LAN !
  • 3,5" SBC !
  • HDMI & DP !

  • Intel® i5-1145G7E Processor
  • Outstanding graphic computing capability with Integrated Intel®Iris Xe graphics
  • Intel® vPro technology support
  • Compatible with M.2 3042/3052 + SIM slot for 5G cellular network connectivity
  • 1 x DDR4 SO-DIMM and support up to 32GB
  • Support Quadruple display for HDMI, DisplayPort and LVDS / eDP
  • Support 1 x M.2 2280 B-Key (SATA, PCIe X1), 1 x M.2 2230 E-Key (CNV)
  • 1 x SATA III
  • 2 x Intel® Gigabit Ethernet
  • 2 x USB 2.0, 4 x USB 3.1 Gen2 and 4 x COM
  • 8V~24V wide voltage power input




Share

879.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
MECHANICALFORM FACTOR3.5" SBC: 4” x 5.8” (102 mm x 147 mm)
SYSTEMPROCESSOR11th Gen Intel® Tiger Lake-UP3 i3-1115G4E (Dual Core, 6MB Cache, up to 3.90 GHz) / option: 11th Gen Tiger Lake-UP3 Celeron 6305E / i5-1145G7E / i7-1185G7E
CHIPSETIntel® SoC Integrated
SYSTEM MEMORYDDR4 3200 MHz / 1 x 260-pin SO-DIMM / Max. 32GB (Non-ECC)
GRAPHICSIntel® Iris Xe Graphics
ETHERNETIntel® I219-LM Giga LAN / Intel® I225-LM 2.5GbE LAN
AUDIORealtek® ALC256
I/O CHIPSETNuvoton NCT6126D(eSPI)
TPMNuvoton NPCT750AABYX TPM2.0
EXPANSION SLOTM.2 3042 / 3052 / 2242 / 2260 / 2280 B key (USB2.0, SATAIII, *PCIex1) *Not support M.2 M Key NVMe SSD / Wireless: M.2 2230 E key (PCIe, USB)
BIOSAMI BIOS
H/W MONITORTemperature Monitor / Voltage Monitor / Fan Monitor
WATCHDOG TIMER1~255 steps by software program
SMART FAN CONTROLCPU Fan
GRAPHICSHDMIUp to 4K (3840 x 2160) @30 Hz
DISPLAYPORTUp to 4K (4096 x 2160) @60 Hz
LVDSUp to 1920 x 1200 @60 Hz
eDP (Option) Up to 5120 x 3200 @60 Hz
REAR I/OUSB4 x USB 3.1 Gen 2
DISPLAY I/O1 x DisplayPort 1.2 / 2 x HDMI 1.4
AUDIO I/O-
LAN I/O2 x RJ-45
INTERNAL CONNECTORSSTORAGE1 x SATAIII / 1 x SATA power header
USB2 x USB 2.0
DISPLAY I/O1 x LVDS (*Optional eDP SKU available) / 1 x Backlight Connector
AUDIO I/O1 x Stereo Speaker Header
SERIAL PORT3 x RS232 / 1 x RS232 / 422 / 485
GPIO-
FAN1 x 4-pin CPU Fan Header
POWER1 x AT / ATX Mode Select Jumper / 1 x 8~24V 4-pin Power Connector
OTHERS1 x CMOS Jumper / 1 x Chassis Front Panel Header (2 x 5-pin) / 1 x Front Audio Header (Mic-in & Line-out) / 1 x panel power select header / 1 x backlight power select header, / 1 x Buzzer
POWER REQUIREMENTPOWER INPUT8~24V Wide Range DC Input w/ 4-pin Power Header (Pitch: 2.5mm)
ENVIRONMENTALOPERATING TEMPERATURE28W TDP:-40~50°C with 0.7m/s Air Flow (w/ Standard Temp. SSD/mSATA/RAM) / 15W TDP:-40~60°C with 0.7m/s Air Flow (w/ Standard Temp. SSD/mSATA/RAM)
STORAGE TEMPERATURE-40 ~ 85°C (-40 ~185°F)
OPERATING HUMIDITY10% ~ 95% R/H (Non-condensing)
CERTIFICATIONCE / FCC Class B
OSOS SUPPORTWindows® 10 64-bit / Ubuntu 18.04 / Kernel 4.15 / Linux (support by request)
PACKING LISTPACKAGE1 x Motherboard / 1 x 50 cm SATA Cable / 1 x 45 cm SATA Power Cable / 1 x Quick Installation Guide
