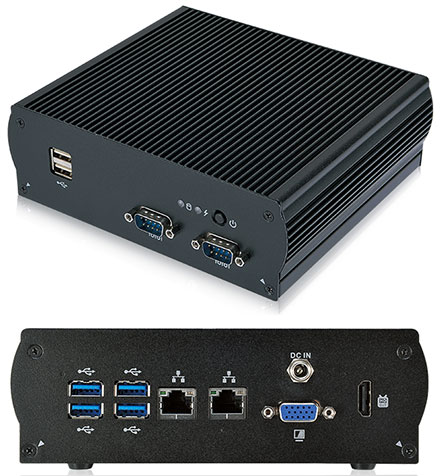

Mitac S300-10AS-N4200 (Intel Apollo Lake N4200, 2x Gigabit LAN, VGA/HDMI, 2x RS232) [FANLESS]

Mitac S300-10AS-N4200 (Intel Apollo Lake N4200, 2x Gigabit LAN, VGA/HDMI, 2x RS232) [<b>FANLESS</b>]

S300 is a fanless box pc, powered by the latest Intel Apollo Lake performance-enhanced processor. The whole system is less than 1.4 liter size but still with versatile I/O aiming to adapt it in different environments and wide applications.

Long term availability until at least 2023 !

For a full PC you need in addition :
- mSATA SSD
- RAM



Share

498.00 EUR
incl. 19% VAT, plus shipping
Available in 4 weeks

Add to cart
Processor Intel Apollo Lake, N4200 (2M Cache)
Chipset SoC
OS support Linux, Windows 10 64bit, Android (no Win7 !)
PCB 3.5” single board computer Mitac PD10AS, 4” x 5.8” (102mm x 147mm)
Memory DDR3L [Low Voltage, 1.35V] RAM, 1867MHZ, (1x So-DIMM slot, up to 8GB)
LAN 2x Intel I210 (10/100/1000 Mb/s) Ethernet LAN controller
Audio Realtek ALC-662
Storage mSATA
MiniPCIe 1x PCI Express Full-Length Mini Card slot (USB / PCIe / SATA), 1x SIM Card holder
M.2 1x M.2 (2230) with PCIe x 1 and USB 2.0 signal for wireless
Display interface 1 x DSUB-15 VGA, 1 x HDMI Out
Front I/O 2x USB2.0, 2x RS-232, Power button, Power LED, HDD LED
Rear I/O 4x USB 3.0, 2x RJ45, 1x VGA out, 1x HDMI-out, 1x DC-in
Internal speaker 1 x Buzzer As default
Power supply 8-24VDC Wide Range DC Input
65W, 19V, Power Adapter
Chassis Dimension 200mm x 200mm x 35mm (Fanless)
Misc NCT6116D
Nuvoton NCT6116D
Voltage sense to detect out of range power supply voltages
Thermal sense to detect out of range thermal values
BIOS UEFI mode only (Does not support Legacy mode)
MiAPI: Programmable header (support 10x GPIO, 1x SMBUS, 1x UART, 1x Watchdog) with API library supported for Windows OS
Environmentals Fanless
System Temp: 0 Degree C~ 50 Degree C
Humidity: 10%~90% Non-Condensing
Data sheet Download (PDF)
