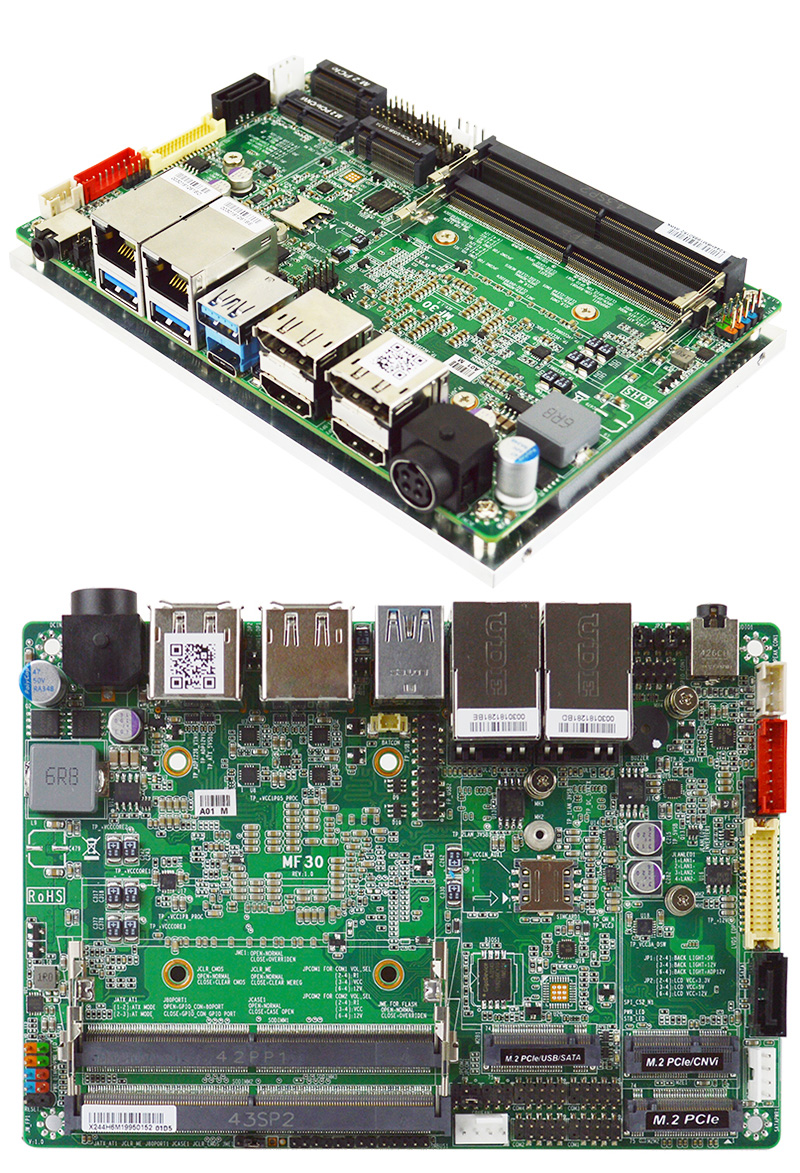

Jetway MF30-13350 3,5" SBC (Intel 13th Gen. i5-1335U, 2x HDMI, 2x dP) [FANLESS]

Jetway MF30-13350 3,5" SBC (Intel 13th Gen. i5-1335U, 2x HDMI, 2x dP) <b>[FANLESS]</b>
  • Intel i3-1335U !
  • 3,5" SBC !
  • 2x LAN !
  • 2x HDMI, 2x dP !

  • 2 x DDR5 SODIMM Slot, up to 64GB
  • 2 x 2.5GbE
  • 1 x SATA3, 1 x M.2 M-key (2242/2280)
  • 1 x M.2 E-key(2230), 1 x M.2 B-key(3042/3052)
  • 3 x USB 3.2 Gen2, 4 x USB2.0, 1 x USB Type C
  • 2 x RS232/422/485, 2 x RS232
  • 2 x HDMI, 2 x DP, 1 x Type C DP, 1 x LVDS
  • DC Input 12~36V


Share

698.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks.
Will be ordered for you.
Add to cart
RAM :

SSD (mSATA):

SSD (M.2 NVME):

OS:

Build/Install:
SYSTEM
FORM FACTOR 3.5″ SubCompact Board
CPU Onboard Intel® 13th Generation Intel® Core™ /U-series Processor SoC (formerly Raptor Lake U)
Intel® CoreTM i5-1335U
*For additional compatible CPUs, please contact regional sales
CPU TDP 15W
CHIPSET Integrated with Intel® SoC
MEMORY TYPE 2 x DDR5 4800MHz, Dual Channel SODIMM, up to 64GB
BIOS UEFI
WAKE ON LAN Yes
WATCHDOG TIMER 255 Levels
SECURITY TPM2.0 (Optional)
RTC BATTERY Lithium Battery
DIMENSION (L X W) 148mm x 102mm (5.75″ x 4″)
OS SUPPORT Windows® 10 (64bit), Windows® 11 (64bit)
Linux
POWER
POWER REQUIREMENT DC 12~36V
POWER SUPPLY TYPE AT/ATX
CONNECTOR DC-in jack
DISPLAY
CONTORLLER Intel® Iris Xe Graphics
LVDS/eDP/MIPI-DSI 1 x LVDS, up to 1920 x 1200 60Hz, co-lay eDP
DISPLAY INTERFACE 2 x HDMI 2.0b, up to 4K x 2K 60Hz
2 x DP1.4, up to 4K x 2K 60Hz
1 x Type C DP1.4, up to 4K x 2K 60Hz
MULTIPLE DISPLAY Support 4 Displays
AUDIO
CODEC Realtek ALC897
AUDIO INTERFACE 1 x external Line-out/MIC Combo
SPEAKER 1 x internal speaker
EXTERNAL I/O
ETHERNET 1 x Intel® i226V, 10/100/2500Base
1 x Intel® i226LM, 10/100/2500Base
USB 3 x USB3.2 Gen 2
1 x USB3.2 Gen 2 Type C support DP ALT mode
SERIAL PORT —
VIDEO 2 x HDMI 2.0b
2 x DP1.4
1 x Type C (ALT mode)
INTERNAL I/O
USB 4 x USB2.0
SERIAL PORT 2 x RS232/422/485 (COM1/COM2)
2 x RS232 (COM3/COM4)
GPIO 8-Bit
SMBUS Yes
FAN 1 x CPU Fan
SIM 1 x Nano SIM
FRONT PANEL HDD LED
PWR LED
Power Button
Reset
OTHERS 1 x Chassis intrusion
1 x AT mode
STORAGE
SATA 1 x SATA3
1 x SATA Power Connector
MINI PCI-E/MSATA —
M.2 1 x M-Key 2242/2280 (PCIe 4.0 x4) support NVMe
eMMC —
EXPANSION
M.2 1 x E-key 2230 (USB2.0/PCIe 3.0×1) support CNVi
1 x B-key 3042/3052 (USB 3.2/USB3.0) for 4G/5G/LTE OR 1 x B+M-key 2242 (SATA/PCIe 3×1) for SSD
OTHERS —
ENVIRONMENT & CERTIFICATION
OPERATING TEMPERATURE -20°C ~ 60°C (-4°F ~ 140°F)
STORAGE TEMPERATURE -20°C ~ 85°C (-4°F ~ 185°F)
OPERATING HUMIDITY 10~90% RH (non-condensing)
STORAGE HUMIDITY 0~95% RH (non-condensing)
CERTIFICATION Meet CE/FCC Class A
Data sheet Download (PDF)
Data sheet Print view
