CTF700-CT - VGA 7" TFT - Capacitive Multi-Touchscreen USB - PAL/NTSC - IR Remote - Audio (500 nits) [LED-Backlight]

CTF700-CT - VGA 7" TFT - Capacitive Multi-Touchscreen USB - PAL/NTSC - IR Remote - Audio <b>(500 nits) [LED-Backlight]</b>
3D 360° View
  • High brightness !
  • Audio speakers !
  • Rear CAM feature !
  • Auto-PowerOn !

New : LED-Backlight-Technology, with optimized color saturation enabling particular high and shining display. The scale of displayable color nuances is increased by 45% because of the new technology. Conventional LCDs are based on CCFL backlight, which can display approx. 72% of the standard color scale of NTSC (National Television Systems Committee). With LED-Backlight-Technology 104% of the NTSC-color scale can be displayed. This results in displaying in a highly realistic manner.

The new CTF-700-CT TFT-Display is the ideal display- and input-unit for your Laptop, CarPC or HTPC. With the multi-touchscreen functionality you easily can control your PC. The briliant VGA
[more]

Share

379.00 EUR
incl. 19% VAT, plus shipping
In Stock (4 pcs)

4 von 5 Sternen
2 ratings
Add to cart
Compare
Front
Rear
Side
LCD Size 7"
Aspect Ratio 16:9
VGA resolutions 640x480-1920x1200
Native resolution 800x480
Dot resolution 2400x480
Brightness 500
VGA Input D-SUB 15
Video Input 3x PAL/NTSC (RCA)
Audio Input 2x RCA (Stereo)
Touchscreen USB
Case color black
Power Input 12-24VDC
Power Consumption 9W
Case size 184 x 129 x 32 mm
Visible area 154 x 93 mm
Certificates CE, E1
Style On-Dash
yes Adjustable backlight
yes Auto Power-On
no Picture In Picture
yes IR Remote
no Headrest mount
yes TS pencil
yes Earphone
yes Adjustable video aspect
no Mirrorable video
yes Reverse camera input

New : LED-Backlight-Technology, with optimized color saturation enabling particular high and shining display. The scale of displayable color nuances is increased by 45% because of the new technology. Conventional LCDs are based on CCFL backlight, which can display approx. 72% of the standard color scale of NTSC (National Television Systems Committee). With LED-Backlight-Technology 104% of the NTSC-color scale can be displayed. This results in displaying in a highly realistic manner.

The new CTF-700-CT TFT-Display is the ideal display- and input-unit for your Laptop, CarPC or HTPC. With the multi-touchscreen functionality you easily can control your PC. The briliant VGA-display ensures a maximum readability and sharpness.

The device has integrated Stereo-speakers, a rear camera input and the dimmer button in the front will enable perfect viewing pleasure also during the night.

AC-Adapter for home usage and a car cigarette lighter adapter is included as well as the IR-remote-control unit and the extra long (2,5 meters) All-In-One connector cable.

The CTF-700-CT can be used with any PC/MAC with VGA- and USB port.

Driver-CD included, compatible with :
- Windows 95/98/ME/NT4/2000/XP/7/8/8.1/10
- XP Tablet PC Edition
- Windows CE 2.12, 3.0, .net
- Linux RedHat,Mandrake,..
- Macintosh OS 9.x, 10.x
- DOS,..





Displays with True-800x480-Support achieve a pixel accurate view at 800x480@70Hz

Spezifications
Screen size 7" digital
Touchscreen 2-finger capacitive multi
Aspect Ratio 16:9 wide TFT screen
Dot Resolution 2400x480= 1,152,000 dots
Physical Resolution 800x480
Supported Resolutions 640x480-1920x1200 (also eg. 1366x768)
Color configuration RGB stripe
Power input DC 12/24V
Power consumption max. 8W
Video system 3x Video inputs (PAL/NTSC)
1x VGA input
Dimensions Display Case : 184x129x32 mm
Display : 154 x 93 mm
Video input signal 1.0Vp-p, composite video
Brightness 500 cd/m²
Contrast 500:1
Vibration IEC68-2-6
Operating Temperature -20° bis 70°C
Features Full function OSD control (englisch)
Built-in Stereo-speakers
Auto Power On/Off
Earphone-Output (rear side)
Automatic switching to rear camera (by signal detection on AV3)

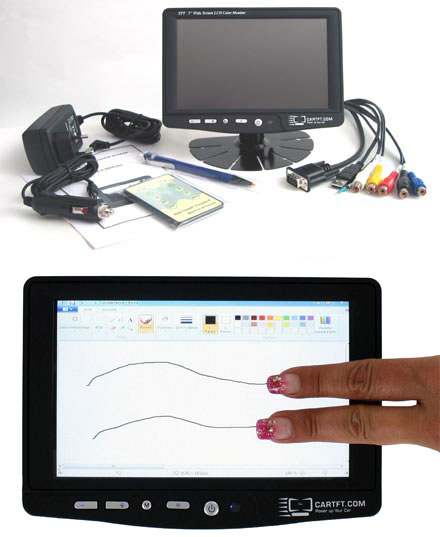

What is included ? - 7" VGA Multi-Touchscreen TFT with Video/Audio-support
- Infrared Remote Control
- Car dash mounting bracket
- Touchscreen pencil
- VGA/Video/Audio/Touchscreen-cable (all-in-one !) 2,5 meters length
- Power Adapter f. EU 230V
- Cigarette Lighter Adapter
- Touchscreen Driver-CD
- Manual
Data sheet Download (PDF)
Data sheet [Energy efficiency class] Download (PDF)
Data sheet Print view
Please login for creating product ratings.
Your rating:

Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

Customer ratings: 4 von 5 Sternen
Average rating, based on 2 ratings
5 von 5 Sternen from rassigesduo am 21.06.2017 | | See all my comments
3 von 5 Sternen from Borgman am 11.11.2013 |

Der TFT ist tagsüber sehr gut lesbar, auch bei Sonne. Verarbeitung ist gut, er macht einen stabilen Eindruck.

Er reagiert gut auf Eingaben und liess sich problemlos an mein M10000 anschliessen, der Treiber lag zwar bei aber es funktioniert auch mit dem vom vorher verwendeten MM400 -V3- installierten. Außerdem passte sogar das alte Multikabel vom MM400 (natürlich nach vorherigem Vergleich von Polung und Volt- / Amperezahl meinerseits).

Leider gibt es einen Mangel bei Nacht für den aber CarTFT nichts kann, der Hersteller des Monitors sieht es nicht als Mangel. Nachts, wenn der Dimmer voll abdimmt, sieht man einen Schein von den LED's der Buttons des TFT's der im unteren Drittel des Monitors sichtbar ist. Daher nur 3 Sterne.

Der Support von CarTFT hat sich sehr gut um mein Problem bemüht, doch leider stellt sich eben der Hersteller quer.
Ich werde nun die Garantiezeit abwarten und dann die LED's vielleicht überkleben, dann sollte der Monitor prima sein.
Mal ehrlich, wer braucht schon beleuchtete Buttons, wenn darunter die Displayquali leidet.

Daher sind die 3 Sterne angebracht denke ich.
