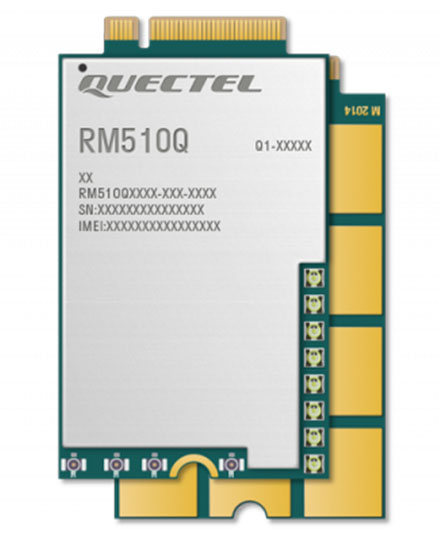

Quectel RM510Q-GL 4G/LTE/5G M.2 NGFF Modem

Quectel RM510Q-GL 4G/LTE/<b>5G</b> M.2 NGFF Modem
  • 5G !
  • up to 2.1Gbit !

RM510Q-GL is a sub-6GHz and mmWave M.2 5G IoT module measuring 52.0mm × 30.0mm × 2.3mm which meets the 3GPP Release 15 specification and is optimized for IoT/eMBB applications anywhere in the world. It supports both standalone (SA) and non-standalone (NSA) modes, and also supports LTE category 22 connectivity. The RM510Q-GL is compatible with Quectel’s LTE-A category 6 module EM06, category 12 module EM12, and category 20 module EM20, enabling customers to migrate from LTE-A to 5G. The module optionally features integrated GNSS (GPS/GLONASS/BeiDou/Galileo) for rapid and precise positioning, while integrated eSIM optionally allows remote account provision without needing to open th [more]

Share

329.00 EUR
incl. 19% VAT, plus shipping
In Stock (11 pcs)
Add to cart

RM510Q-GL is a sub-6GHz and mmWave M.2 5G IoT module measuring 52.0mm × 30.0mm × 2.3mm which meets the 3GPP Release 15 specification and is optimized for IoT/eMBB applications anywhere in the world. It supports both standalone (SA) and non-standalone (NSA) modes, and also supports LTE category 22 connectivity. The RM510Q-GL is compatible with Quectel’s LTE-A category 6 module EM06, category 12 module EM12, and category 20 module EM20, enabling customers to migrate from LTE-A to 5G. The module optionally features integrated GNSS (GPS/GLONASS/BeiDou/Galileo) for rapid and precise positioning, while integrated eSIM optionally allows remote account provision without needing to open the device. The RM510Q-GL supports nearly all major carriers worldwide and is ideal for globally deployed mobile devices including industrial routers, industrial PDAs, rugged tablet PCs and digital signage.

  • Worldwide 5G and LTE-A coverage
  • Supports both NSA and SA modes
  • Compatible with Quectel’s LTE-A Cat 6 EM06, Cat 12 EM12 and Cat 20 EM20
  • Supports MIMO
  • Integrated eSIM (optional)
  • USB 3.1 / PCIe 3.0 high speed interface
  • Multi-constellation GNSS receiver available
  • Feature refinements: DFOTA and VoLTE (optional)



Form Factor  LGA
Dimensions (mm) 41.0 × 44.0 × 2.75
5G Sub-6 GHz
 Frequency Bands (MHz)  5G NR Bands: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n77/n78 LTE bands: LTE-FDD: B1/B3/B5/B7/B8/ B20/B28/B32 LTE-TDD: B38/B40/B41/B42/B43 WCDMA Bands: B1/B5/B8
Region  EMEA/ Oceania/ Brazil
Operating Temperature -30°C ~ +75°C
 Extended Temperature  -40°C ~ +85°C
Control via AT Commands  3GPP TS27.007 and Quectel Enhanced AT Commands
Data Transmission 5G SA Sub-6: Max. 2.1Gbps (DL)/ Max. 900Mbps (UL) 5G NSA Sub-6: Max. 3.3Gbps (DL)/ Max. 600/650Mbps (UL)2
  LTE-FDD: Max. 2Gbps (DL)/ Max. 200Mbps (UL)
  WCDMA: Max. 42 Mbps (DL)/ Max. 5.76Mbps (UL)
Interface  (U)SIM 2, 1.8V/3.0V
UART: 3
USB: 2.0/3.0/3.1
PCIe Gen3 x 2 Lane
Cellular Antenna: × 4 + 2 (Optional), GNSS: × 1
Enhanced Features VoLT Optional
DTMF - Dual-tone Multi-Frequency
DFOAT - Delta Firmware over the Air GNSS: GPS/ GLONASS/ BeiDou/ Galileo
 Software Features Driver for Windows 7/8/8.1/10, Linux 2.6~5.8, Android 4.x/5.x/6.x/7.x/8.x/9.x/10
 Certifications  CE/RCM/GCF
Data sheet Download (PDF)
Data sheet Print view
Manual [EN] Download (PDF)
AT Commands Manual Download
Driver (Windows) Download
