Jetway HBJC903I1BV-6412L (Intel Elkhart Lake J6412 CPU, DDR4 up to 32GB, 12V DC-in) [FANLESS]

Jetway HBJC903I1BV-6412L (Intel Elkhart Lake J6412 CPU, DDR4 up to 32GB, 12V DC-in) <b>[FANLESS]</b>
  • Intel J6412 2.0GHz/QC !
  • 4x COM !
  • Fanless !
  • 2x LAN !


  • Intel® Elkhart Lake J6412 2,0 GHz/QC Core MCP-Prozessor (Turbo 2,6 GHz)
  • Unterstützt DDR4 3200/2933 bis zu 32 GB
  • 2* Intel ® I225-V 2,5 GbE
  • 1* SATA III (6 Gb/s), 1* M.2 M-Schlüssel (NVMe/SATA)
  • 1* M.2 E-Schlüssel (unterstützt WIFI/BT-Modul)
  • 1* M.2 B-Schlüssel (unterstützt 4G/5G-Modul)
  • 1* VGA, 1* HDMI
  • 2* USB3.1 (Gen.1), 4* USB2.0, 2* RS485, 2* RS232
  • Lüfterloses Kühldesign
  • 12 V DC-Eingang





Share

489.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
Model – HBJC903I1BV-6412L (MB: JLI1BV-0L, Mini-ITX)
CPU/Chipset – Intel® Elkhart Lake J6412 2.0G/QC SoC processor (Turbo 2.6GHz)
BIOS – AMI 128MB SMT Flash ROM
Memory – 1* DDR4 3200/2933MHz up to 32GB
Network – 2* Intel® i225-V 2.5GbE
Graphics – Intel® HD Graphics, shared memory
– 1* VGA (Max Resolution : 1920×1080@60Hz)
– 1* HDMI1.4 (Max Resolution : 4096×2340@30Hz)
Storage – 1* 2.5”SATA 6Gb/s internal drive bay
– 1* M.2 M key (2242/2280, SATA or NVMe)
Expansion – 1* M.2 E key (2230) support WIFI/BT
– 1* M.2 B key (3042/3052) support 4/5G Module

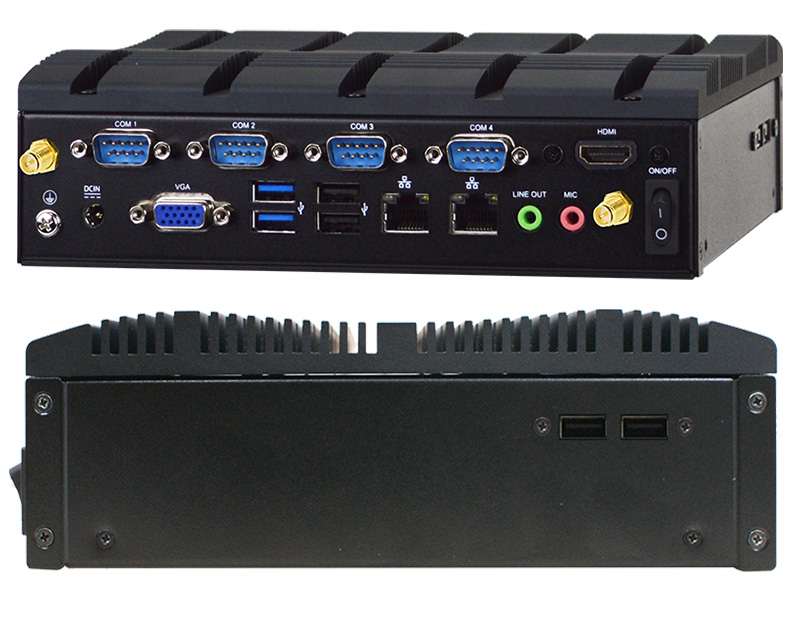

Rear Panel I/O – 2* USB3.1 (Gen.1)
– 2* USB2.0
– 1* VGA
– 1* HDMI
– 2* RS485
– 2* RS232
– 2* RJ45
– 1* Line-out
– 1* MIC
– 1* DC Jack
– 2* Antenna
– 1* GND Hold
– 1* Power Button
Side Panel I/O – 2* USB2.0
Internal Connector – 1* Nano SIM Card slot
Power Source – 12V DC-in
– Adapter : DC_12V_5A / 60W
Compliance – CE, FCC, RoHS, ErP Ready, Option
Dimensions – System: 200.0 (W) x 180.4 (D) x 59.5 (H) mm
– Net Weight: 2.27KG； Gross Weight: 3.27KG
Temperature – Operating Temperature: -10 ~ 50° C
– Storage Temperature: -20 ~ 60° C
– Humidity: 10% ~ 90% RH @40°C (non-condensing)
OS Support – Windows 10/11, Linux
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (Rackmount) Download (PDF)
Jetway Catalog (Barebones) Download (PDF)
